Deep Drawing Press
Precision Metal Forming
Key specifications
- Lead time
- 8–12 weeks
Overview
Specialized hydraulic press for deep drawing and metal forming. Features precise pressure control, ideal for complex geometric shapes and large surface workpieces.
How it works
Deep drawing pulls a flat blank into a die to make a hollow part in one stroke — a cup, a housing, a sink. The main cylinder drives the punch down while a die cushion under the bed holds the edge of the blank, so the metal flows into the die instead of wrinkling or tearing.
Pressure is controlled through the stroke, which is what makes complex shapes and large surfaces possible.
Choosing one
The right press follows from the part, its material and its thickness. Ask for a quotation and an engineer will size it with you.

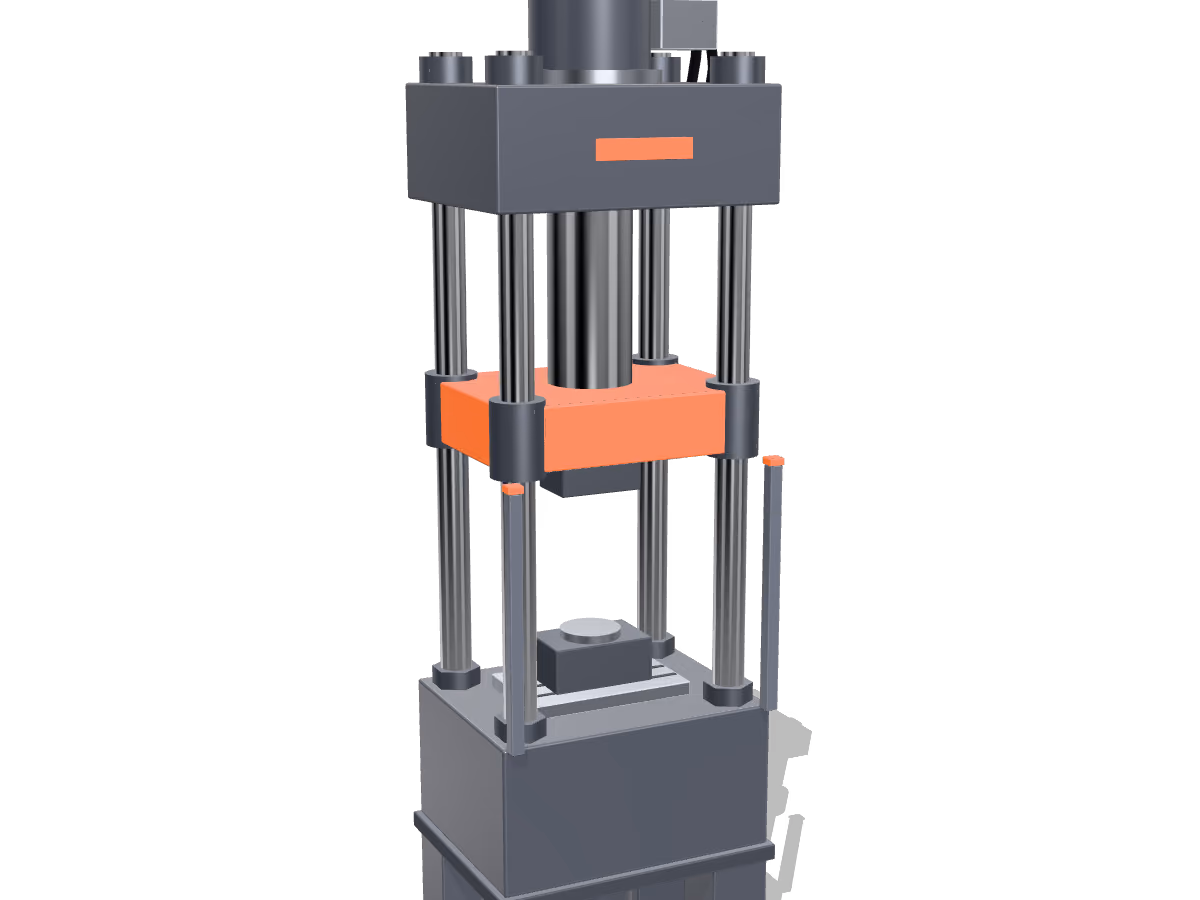

An illustration of the working cycle: scroll and the machine runs through it.
Features
Optimized for deep drawing cycles
The press and its die cushion work together through the stroke: the punch draws, the cushion holds the blank.
Precision hydraulic pressure control
Pressure follows the stroke, so the metal is drawn rather than torn.
Handles complex geometries with ease
Controlled pressure is what lets the metal flow evenly into a complex die.
Force capacity from 40 to 1000+ tons
Sized with you from the part, its material and its thickness.
Applications
- Deep drawing
- Metal forming
- Complex shapes
- Large-surface parts
Tell us what you need to press.
An engineer will study your request and get back to you with a proposal.
